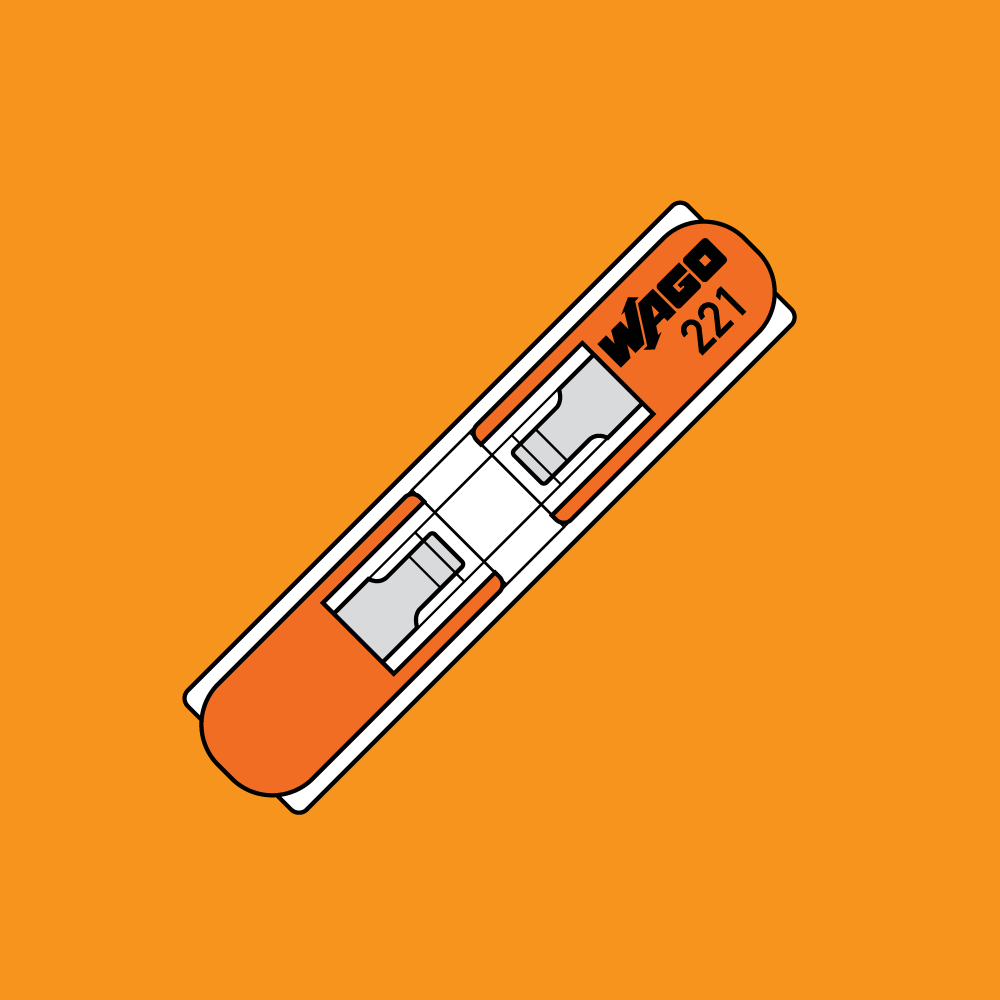

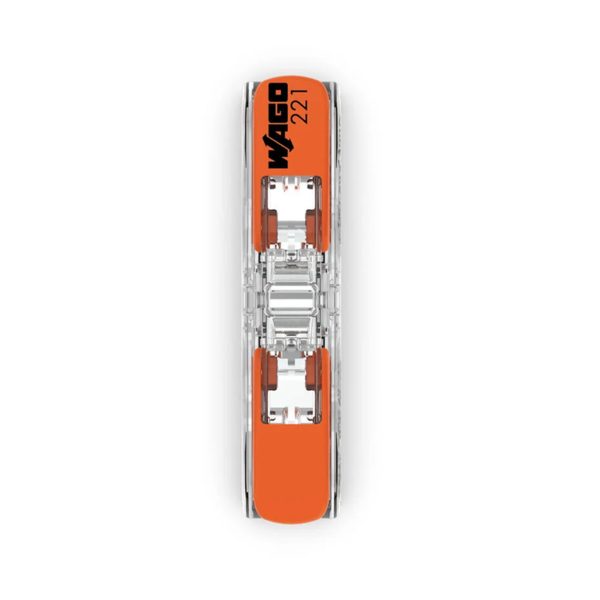

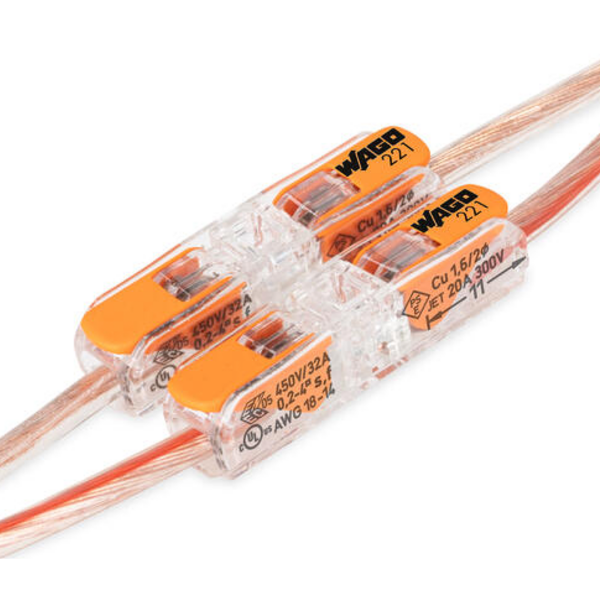

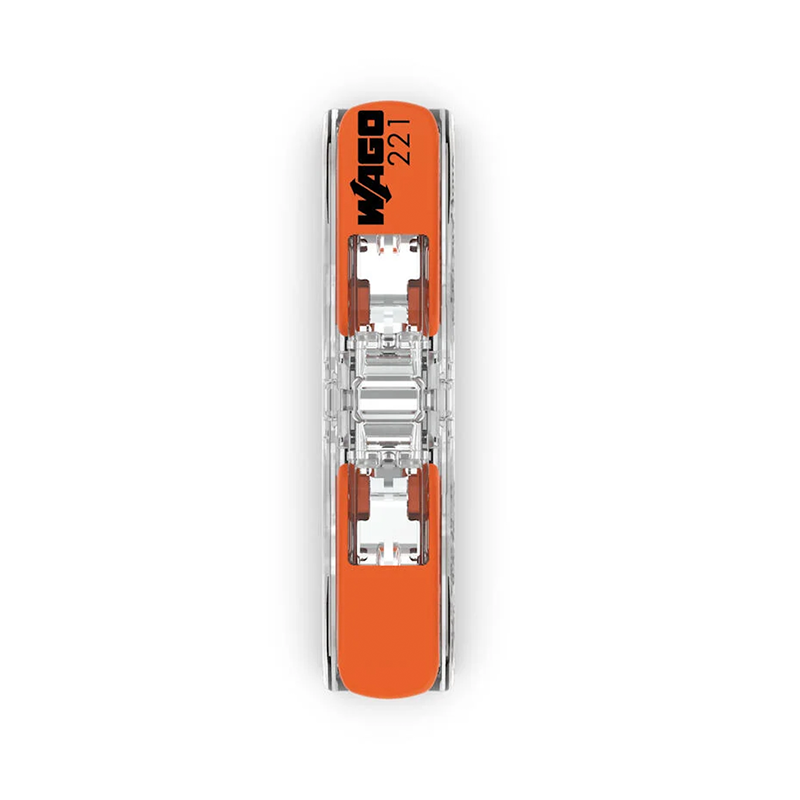

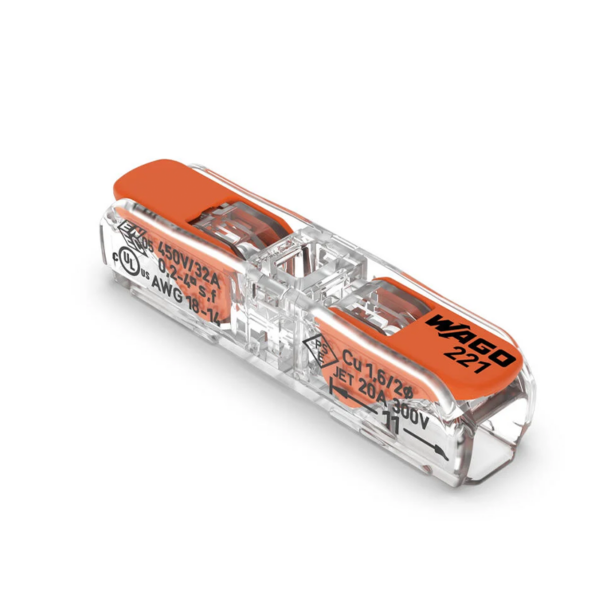

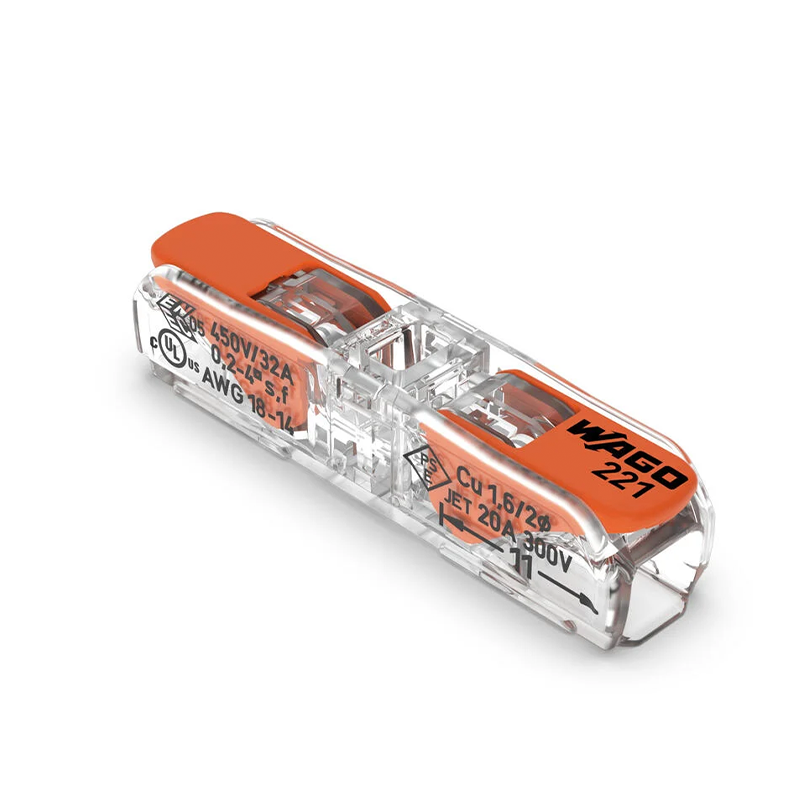

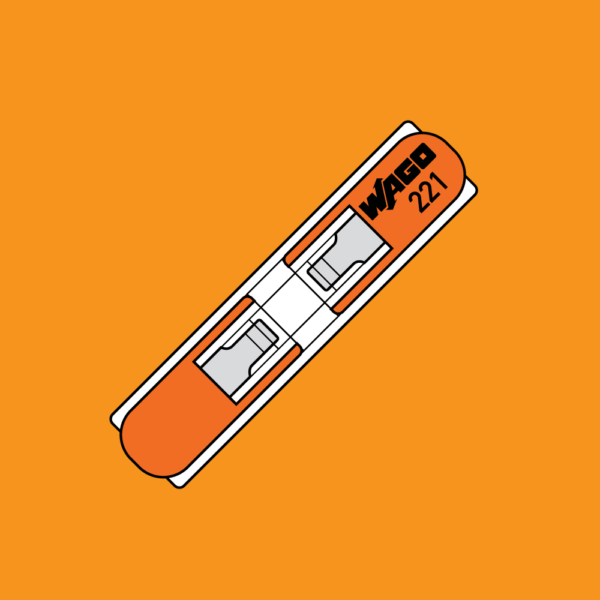

Wago Inline 221 Wire Connector

The compact Wago 221 Inline Wire Splicing Connector clips make LED wiring and installation faster, safer and easier.

Product Specs

Dimensions

35.5 x 8.1 x 8.9mm
Compatibility

0.2 to 4 mm² (24–12 AWG)
Power Output

600V/20A
Includes

60pcs Per Box

With a unique compact design, Wago Inline Connectors make connection possible without tools, even in the most difficult to access installations.

With the transparent housing, you can ensure your wiring has been inserted correctly. This truly standard-setting solution for all conductor types from 0.2 to 4 mm². Simply strip your LED wire to 11mm, open the clamping unit and insert your conductor, then lower the lever to close the clamp for a solderless connection.

These compact splicing connectors are suitable for all conductor types. Available in inline, 2, 3 and 5 conductor splicing connectors.

Find all the latest product specifications and guides below:

Product Data Sheet Download
LED Wiring Accessories Guide Download

Product Type	Wiring Accesssories

Frequently asked questions

Wago 221 Inline Wire Connectors are suited to the following applications:

24V and 12V applications
Cabinet Lighting
Lightboxes
Commercial Lighting
Shopfitting
Architectural Lighting
Suitable for use with all conductor types
Suitable for outdoor use when combined with the Wago Gelbox

Follow these steps on how to install the Wago 221 Inline Wire Connectors.

Strip your LED wire/conductor to 11mm (0.43”).
Open the clamping unit with the integrated lever and insert your conductor.
Lower the lever to close the clamp.
Ensure your wire has been inserted correctly.

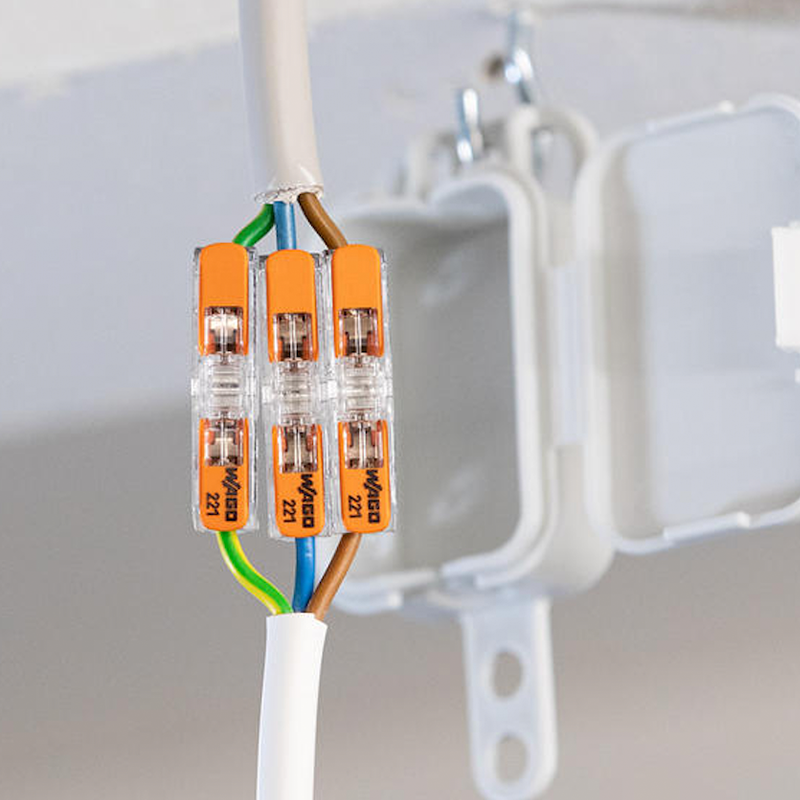

The Wago 221 Inline Wire Connectors can be used alongside the Wago Gelbox waterproof protection box, for a complete watertight outdoor wiring solution.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many modules and wire connectors you will need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Wago 221 Inline Wire Connectors you’ll need for your next project.
