24V faux-neon LED strip designed for signage and architectural lighting.

Product Specs

  • Power Output

    12W/m (24V)

  • Lumens

    350lm/m

  • Colours Available

    2700K, 6500K, Red, Green, Blue, Yellow, RGB

  • Warranty

    5 Years

  • Ingress Protection

    IP67

  • Max Series

    10 Metres

  • Dimensions

    11mm x 22.5mm x 10m

  • Diameter

    60mm Horizontal Bend

  • Includes

    10 Metre Roll

  • Range

    Beam Angle 145° - 155°

Novaneon Reflex H1123D is a 24V horizontally flexible outdoor LED strip light designed to emulate the look of traditional glass-moulded neon.

Suitable for signage and lettering applications, as well as large-format architectural installations. Its silicone-based housing is UV stable, weathertight and highly flexible, perfect for outdoor projects.

  • Flexible horizontal bending strip
  • Enhanced 5050 LEDs
  • Can be cut every 8.3mm
  • Can be cut every 6 LEDs
  • 120 LEDs per metre
  • IP67: UV resistant and salt mist proof
  • 60mm Bend Radius
  • Operates at -40°C – +70°C

Find all the latest product specifications and guides below:

Units

, , ,

Colour

2700K, 6500K, BLUE, GREEN, RED, RGB, Yellow
IP Rating

Product Type

Neonflex
Voltage

12V
Power Output

12 W/M
Features

Dimmable

Installation guide

1
Components required: These items are required for installation and are sold separately. L to R: End Cap, Terminal Insert, Silicone Glue, Cutting Shears.
2

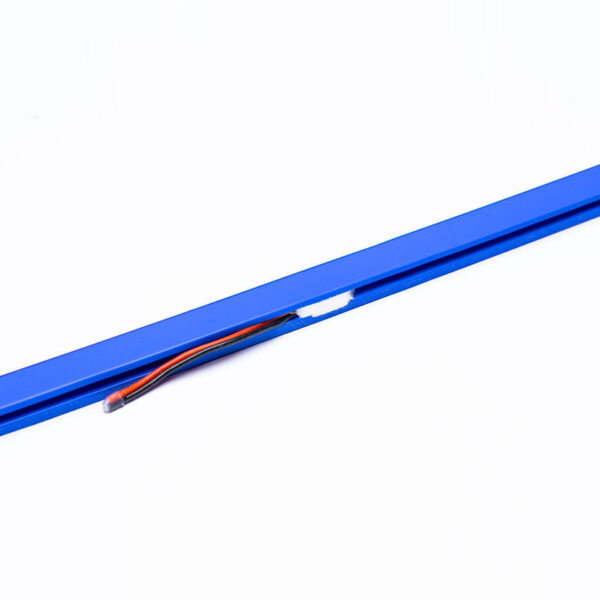

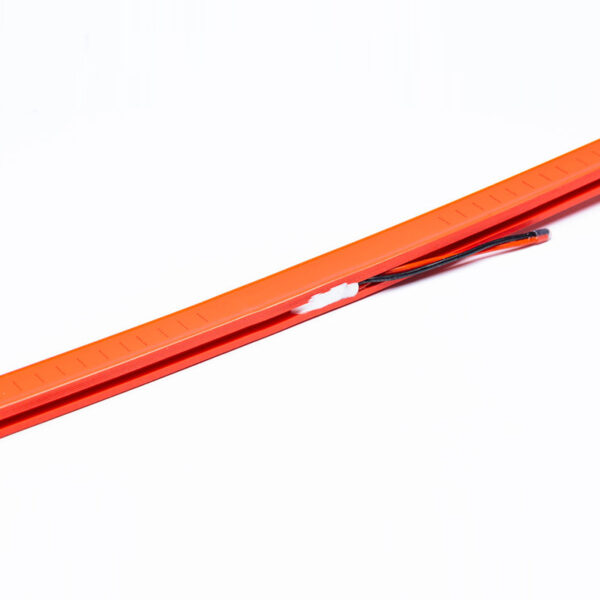

Note: Wire tails are pre-soldered and are located every 500mm on the underside of the Neonflex.
3
Measure the Neonflex to the required length, then trim at the closest cutting mark using your shears.
4
DO NOT cut over the silicone wire join on the underside of the Neonflex.
5
Coat the terminal with silicone and insert into the end of the silicone tube.
6
Coat the end of the silicone tube with silicone and slide on the end cap. Allow adequate time for the silicone to dry before connecting to an LED transformer and powering on.
7
This product has a vertical bend. Avoid twisting during installation.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
